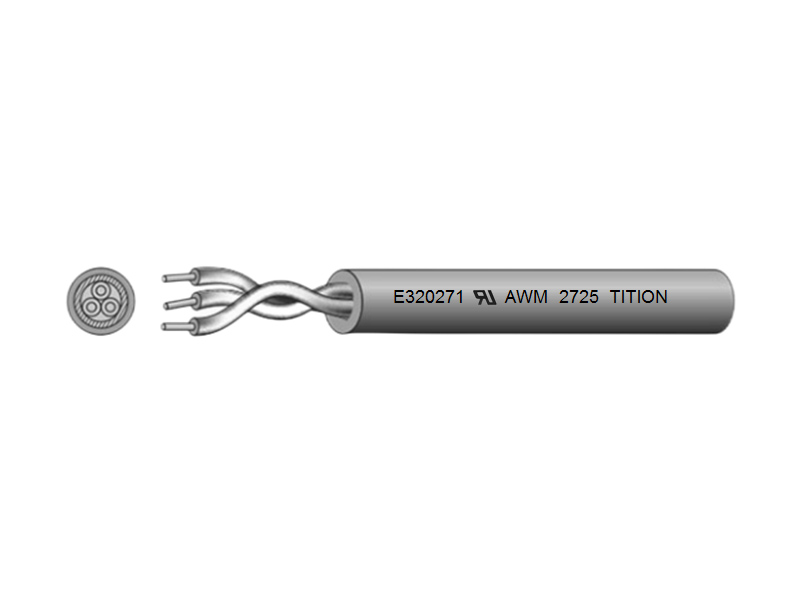

说明
额定温度：：：80℃
额定电压：：：30V
标准：：：UL758，， ，UL1581及CSA22.2 No.210.2
导体：：：绞合铜线镀锡铜丝
绝缘：：：聚氯乙烯
通过VW-1及CUL FT1笔直耐燃连线
环保要求：：：RoHS & REACH
应用
产品普遍用于电器装备内部毗连线
参数
| Conductor 导体 | Insulation 护套 | Maximun Resistance at 20℃ 20℃最大导体电阻Ω/km | ||||
| AWG 线规 | Core.Number 电缆芯数 | Nom.Thick. 平均厚度 mm | Average 参考外径 mm | |||
| 20 | 2× | 0.76 | 5.50 | 36.7 | ||
| 3× | 5.80 | |||||
| 4× | 6.20 | |||||
| 22 | 2× | 0.76 | 5.10 | 59.4 | ||
| 3× | 5.40 | |||||
| 4× | 5.80 | |||||
| 24 | 2× | 0.76 | 4.80 | 94.2 | ||
| 3× | 5.00 | |||||
| 4× | 5.40 | |||||
| 26 | 2× | 0.76 | 4.50 | 150 | ||
| 3× | 4.80 | |||||
| 4× | 5.10 | |||||
